-43%

Techege 4CH 8CH Full HD Onvif 1080P 48V Real PoE NVR All-in-one Network Video Recorder for PoE IP Cameras P2P XMeye CCTV System


Compare

$72.99 $128.05

Buy product

About Tariff: Even though we offer free shipping to most countries, but we do not cover any tax and duty!

you need pay tax yourself. if you need us declare low vaule on package, please remark under your order. usually we declare 40-80USD as invoice price.








RemoteFee:
If your address is remote area define by Fedex /DHL/UPS, you must pay extra $30 remote shipping fee.Or you also can give us another not remote address , we can help you change it ,then you needn’t pay this fee.





Address:
pls check your address is complete and your tele number is right when you place an order, especially check your post code and city is correct information , otherwise your parcel won’t be ship out .




Seller Recommend

34



 This is 48V POE NVR, it only compatible with 720P/960P/1080P POE IP camera!

Package include

1 x 4CH or 8CH 1080P POE NVR (4CH Or 8CH For optional )

1 X USB Mouse

1 X Screws

1 x User manual (English)

1 X 48v Power Adapter for nvr

*About power plug: we will choose different plugs according to different countries



NO HDD Or included 1TB HDD, Depend on your choose



If you need buy some POE cameras to compatible with this nvr please buy them on the follow links:















1080P High Definition Display





4CH NVR: 4*1080P/8*960P      8CH NVR: 8*1080P/8*960P





1080P NVR capatable of recording at 1080P resolution provide





superior image that is 100% larger than 720P








​How to view by Mobile

POE-APP

Connection

NO extra power cables or adapter, it just need by connecting a IP camera to NVR with a single cable

Start enjoy the super easy monitoring among your smart-phone, tablet or PC.

*Note: the package don’t include the follow picture of any products except that NVR.


1108-14

HDMI High Definiton Output



7508p

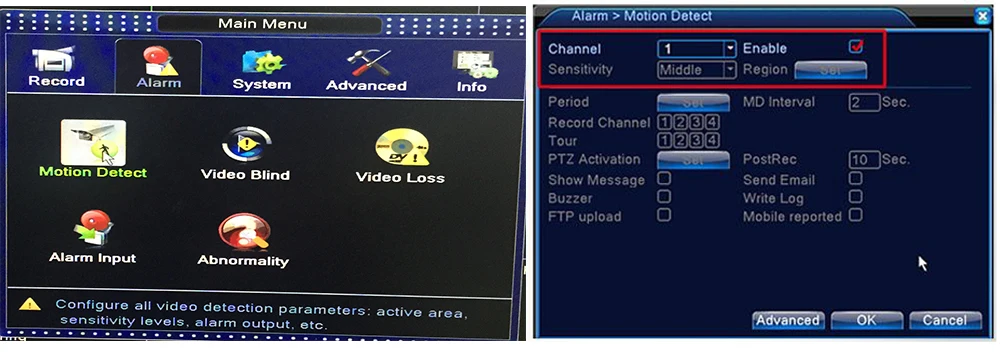

Advanced Motion Detection Recording


The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events.








333





  • Multiple Camera Preview and Playback In Realtime

Techege makes it easy to keep tabs on what’s happening. Setup is fast. And with the free mobile app, all it takes to tune in from wherever you are is a quick tap of the finger.

playback-1

36mm lens 2UTB8kDHfd1vJXKJkSajhq6A7aFXaY71XXpiqFKQL._SL1600_

81mXEas8I0L._SL1600_




PoE Support*4 /8


PoE (power and video over one single cable)





PoE or Power Over Ethernet is a technique where both the video stream as the camera is running on the same network. The NVR thus serves directly as a PoE switch so you need to make additional (expensive) hardware no extra fee. Simply connect the IP cameras on the NVR and ready!





NOTE: Except for the NVR, other items displayed in the picture are not included







*4/8Channel 48V up to 1080P 2MP HD POE NVR

*Plug&Play, child’s play

* Free PC software for NVR

*Support Quad Display & Quad Playback

*Support search, playback and backup by event

*Motion Detection Recording, Email Notification

*Support 1 SATA HDD 4TB Maximum(not included)

*Onvif compliant, working with third-party IP cameras

*DC48V POE Power supports 4pcs 80-100meters RJ45Cable

*3G, Wifi Port Ready, make it work with your 3G & Wifi Devices

*XMeye P2P cloud service, Probably the best remote view smart phone app in the world

*Language Available:Dutch, English, Chinese, French, German, Italian, Polish, Arabic, Portuguese, Russian, Spanish, Thai































Model Number    4CH/8CH
 Operating System  Embedded LINUX operating system
 Image Code Control  Image code quality adjustable, variable bit stream and constant bit stream optional
 Dual Stream  Each channel can set main stream and sub stream
 Video Standard  1080P(1920*1080) 30fps/960P(1280*960) 30pcs/720P(1280*720)30fps
 Preview Image Quality  1080P(1920*1080)/960P(1280*960)/720P(1280*720)
 Recording Playback Quality  2ch playback in 720/960P/1080P mode
 Backup Way  Support Flash Drive, network storage and backup
 Local Login  User name and password
 Recording Storage  Local HDD
 External Ports  Video Input 8*(1280*720) +sub[960*576]+4Ref.+4Play
8*(1280*960)+sub[960*576]+1Ref.+4Play
8*(1920*1080)+sub[960*576]+4Ref.+1Play
1*(1920*1080)+sub[960*576]+4Ref.+1Play
8*(720*576) +sub[352*288]+4Ref.+4Play

 Video Output  1ch VGA+1ch HDMI

 Network Port  8RJ45, 100M LAN port, Data transferring and power supplying all by one network cable
 RS485 Port  Full duplex standard 485 port
 USB Port  2 USB 2.0 ports

 HDD  HDD Port  1 SATA port
 MAX Capacity  Each port supports MAX 4TB HDD
 Mobile Surveillance  Support(iPhone,Windows Mobile, BlackBerry,Symbian, Android)smart phone
 Power Supply  DC48V2.5A(support 80-100meters RJ45Cable)
 Power Consumption  <25W(without HDD)











4CH 1080P POE NVR


48V


8CH 1080P POE NVR









nvr 8ch

Support Multi-Languages

language














4chHTB1CqSeKFXXXXacXFXXq6xXFXXXF



APP connection (XMEYE APP)

xmeye-app



CMS For Local Review & Record

Default IP Address: 192.168.1.10  User Name: admin  Password :null(empty)

Default Username of CMS: super Password: null(empty)

QQ20180412104315QQ20180412104906



IE Cloud Security-Video Management System make it easy to monitor what you care no matter where you are!

QQ20180412105117QQ20180412105505








========================About US====================================





5704bbd8001ba



Techege brand products are sold far to Europe, America, Southeast Asia and other countries of the world. High quality, Good price, Delivery on time and sincere service are our value and promises to our customer.



55c32b48cfa55
