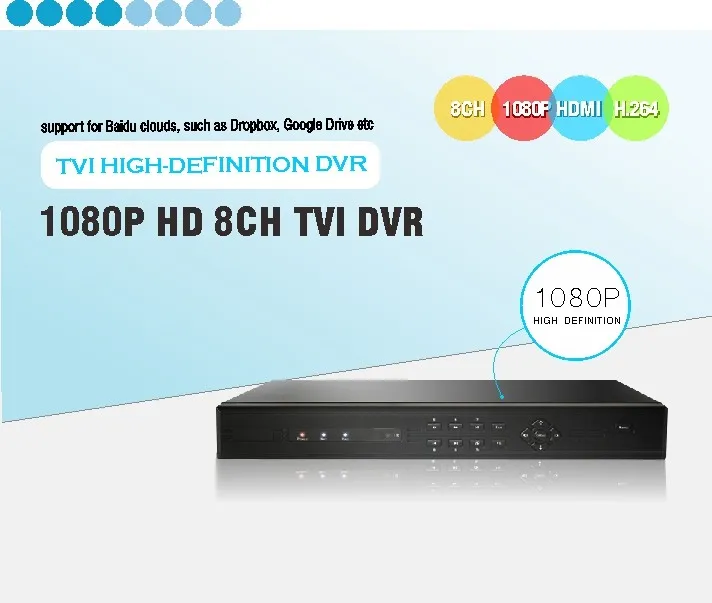

1080P 8Ch HD TVI DVR With Remote View 8 Channel HD TVI Camera Recorder Mobile P2P View Support TV/VGA/HDMI output



Buy product


Key Features

1. Support TV/VGA/HDMI output;the resolution between HDMI & VGA video output can up to 1080P.
2. Optimized compression algorithm :H.264 Main Profile, high compression ratio, high definition support dual stream
3. Highest support 4ch 1080P 5FPS, 4ch 720 30PFS video coding,Maximum 8 channels simultaneous playback
4. Supports 1 x SATA connector, HDD capacity unlimited
5. Support hard drive S.M.A.R.T technology, and support the drive loop to skip, substantially reducing loss of data due to hard drive failure;
6. Supported third-party cloud storage services to support capture, video synchronization-backup feature, support for Baidu clouds, such as Dropbox, Google Drive etc

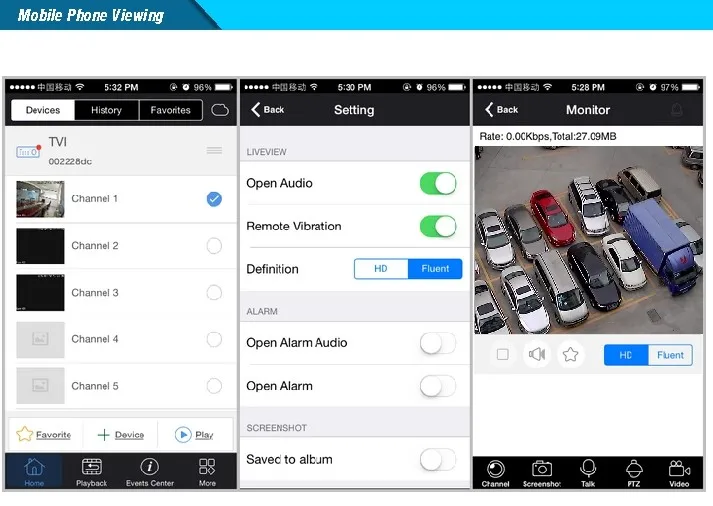

7. Built-in VSS cloud services that are accessible from a browser, mobile client (VSS Mobile), PC client for global Internet access, support pushes the alert message
8 .Network Plug-and-play support SMTP, SSL email alerts.


Mode Name and Description 8CH TVI DVR
Special function P2P function Using Device ID and password to login www.vssweb.net;

Realize remote monitoring, playback and control like IE Web login.

No need any network, IP setting, easy for end user to use network function.
Cloud Storage Support Dropbox and Google Drive.
System Operation System Embedded LINUX
Pentaplex function  Live monitoring, recording, playback, backup & remote access
Control Mode Front panel, USB mouse, IR remote control,Network
Video CVBS/TVI input(Up to 1080P) 8 ch. BNC(1.0Vp-p,75ohms)
IPC input(Up to 1080P) Up to 8ch.Support switching with TVI channel
Output 1 CVBS, BNC (1.0Vp-p,75 ohms)
1 HDMI,  1.3a,support 1920×1080 Resolution
1 VGA,1920×1080,1280×1024,1366×768,1280×720,1024×768  Resolution
Audio Input  1 ch. RCA(Line in,2Vpp,1Kohms)
Output 1 RCA (Line out,2Vpp,300ohms)
Two-way Talk 1st. channel reuse
Display Resolution 1080P(25/30fps), 720P(25/30/50/60fps),960H
Tour Display Support
Privacy Masking Four zones for privacy masking for each channel
Recording Video Compression H.264 Main ProfileLevel5.0
Audio Compression G.711A
Image Encoding Adjustable encoding quality, variable code stream/fixed code stream
Dual Stream Support
Max compression Ability 8ch.1080P/15FPS or 8ch. 720P/30FPS
Recording Mode Manual, auto, motion detection, stop
Video Detection & Alarm Trigger Events Recording, PTZ, Tour,Email
Motion Detection 396 (22×18) detection zone, variable sensitivity levels
Capture JPEG capture
Alarm Input N/A
Alarm Output N/A
Playback&Backup Sync Playback 4ch.960H or 4ch.720P/30fps or 4ch.1080P/15fps
Backup Mode USB,HDD,Network Backup
Network Ethernet 1 RJ-45 port (10M/100M/1000M)
Network protocol TCP/IP, UDP, HTTP, RTP/RTSP
Remote Operation Monitoring,PTZ control,playback,system setting,file download,log information
Smart Phone iPhone,iPad,Android,Blackberry,Windows Mobile
Hard Disk Hard Disk 1 SATA ports,each SATA supports 4TB
HDD Management Hard disk hibernation technology, HDD faulty alarm
Auxiliary Interface USB Interface 2 USB 2.0 ports
RS485 Standard 485, half duplex,PTZ control

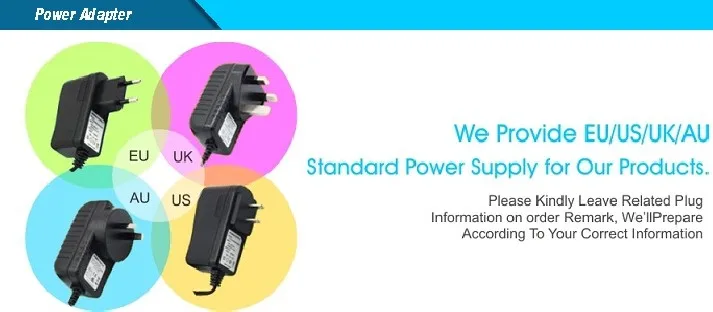

Environment Power Supply DC +12V/2A
Power Consumption 10W (without HDD)
Working Environment 0Celsius Degree~+55Celsius Degree  /  10%~90%RH

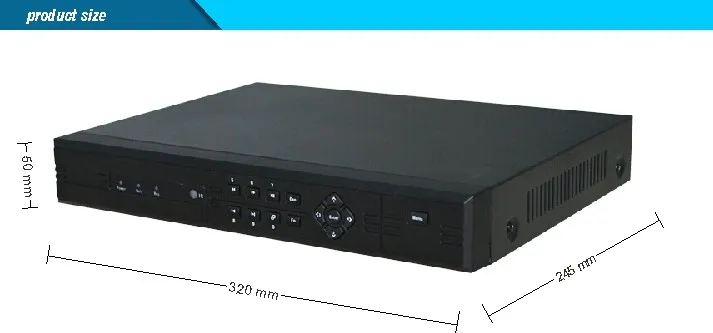

Dimension(W*D*H) 1U,320x245x50mm
Weight 2Kg (without HDD)
Installation Desk type




1. About the sample: How could I get a sample?

Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.


 2. About price list: can I get your price list?

Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.


 3. About the shipment: what type of shipment will you use?

We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.


 4. About payment: what terms of payment do you use?

We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.


 5. About the MOQ: What is your minimum order qty?

Our minimum order qty is 20pcs each model, but we accept small order as trial order.


6,About compensation: what is your company’s compensation policy?

We can compensate buyer’s loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

 them by good quality products.


7. About sole-distributor: How can I be your sole-distributor?

We have special policy for sole-distributor. Please contact our sales person to get related files.


8. About OEM: could we place order by OEM style to produce our own brand products in China?

Of course you can. Welcome to do OEM.

If any further problem, welcome to contact our sales person.

Thanks for your interest



OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:


TransportationCertificationExposition InformationCompany

Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.




Video Output

1CH HDMI 1920X1080 60Hz

Hard Drive Size


Communication Interface


Two-way Audio


Video Resolution


Hard drive Interface Type


Brand Name


Video Input Interface

BNC (1.0 Vp-p, 75Ω)

Audio Output


Model Number


Network Interface

RJ45 10/100M

Audio Input

8 Channel

IP Mode

Dynamic IP address
